INDYCAR Photo by Joe Skibinski

A closer look at INDYCAR’s Aeroscreen

Leave a comment

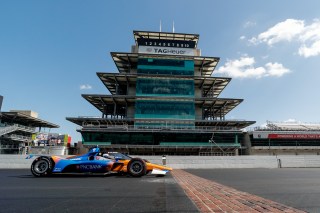

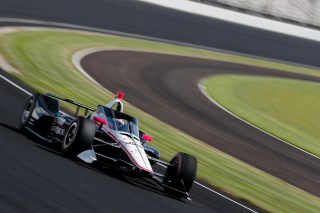

INDIANAPOLIS – From a broader view, last Wednesday’s Aeroscreen test at the Indianapolis Motor Speedway was successful on all counts. It proved that INDYCAR is moving forward with the latest cockpit safety innovation that can greatly increase driver protection in the wake of several serious incidents that have taken place this decade.

The movement toward greater cockpit protection increased after Justin Wilson was killed when the nose cone from Sage Karam’s crashed race car hit him in the helmet in 2015 at Pocono Raceway. Driver Robert Wickens suffered serious injuries from a crash at Pocono at the start of the 2018 race but is making impressive progress from paralysis that saw him able to stand and dance at his wedding in Indianapolis on September 28.

Wickens injuries were caused by rapid deceleration when his car hit one of the fence posts after it was launched into the air when it ran over the back of Ryan Hunter-Reay’s car. His helmet came dangerously close to hitting one of those poles, and that likely spared him from an even more serious head injury.

The INDYCAR Aeroscreen, which is a combination of a “Halo”-like structure used by Formula One with the added safety benefit of an aerospace-material, canopy-like windshield, could greatly reduce the danger involved with some of these crashes.

The INDYCAR Aeroscreen is a joint effort between INDYCAR, Red Bull Advance Technologies, Dallara, PPG Aerospace and Pankl.

“I’m really impressed how quickly it has come together and I can’t thank those guys enough because it is a big change in terms of safety,” Team Penske driver Will Power told NBC Sports.com last Wednesday at the Indianapolis Motor Speedway. Power, along with five-time NTT IndyCar Series champion and 2008 Indianapolis 500 winner Scott Dixon participated in last week’s tests.

Another test is set for Monday, October 7 at Barber Motorsports Park in Birmingham, Alabama. Next Tuesday, October 15, it will be tested on a short track for the first time at Richmond Raceway.

A final test is scheduled for November 2 at Sebring International Raceway.

After those tests are completed, it is expected to be approved for all races beginning with the 2020 NTT IndyCar Series season.

For the drivers, they are confident INDYCAR is trying to make increase safety while keeping the competitive performance of the race car.

“It will certainly change the car,” driver Jack Harvey told NBC Sports.com. “That’s a lot of weight to put in extra in that one spot. It will be interesting to see how that changes. After that, I like the idea of the halo. The screen itself raises a few more questions.

“INDYCAR, has been so innovative and on the forefront of safety that we can trust their want and desire to make the cars safe. We just have to make sure we go in the direction that is best for everybody. The halo and the framework look pretty solid. If that is the route everyone wanted to go, I would be happy to go with that, for sure. It can be an unpopular conversation to talk to people about, but I love being here and I love IndyCar racing. We are trying to be as safe as we can be.

“I’m in.”

INDYCAR and its test drivers believe visibility factors will be addressed and corrected during the tests. Some of these issues include the material used for tear offs that will be placed on the outside of the Aeroscreen. These are similar to the tear offs that are currently used on the visor of the driver helmets that they tear off after they are covered with small bits of debris or fluid from another car.

The tear offs on a windscreen will be removed during pit stops.

“Visibility needs to be a primary factor, especially racing the speeds that we do,” Harvey said. “I haven’t driven it, so it would be wrong to pass any comment. I’ll speak to Josef Newgarden after he has driven it and Will Power and Scott Dixon after today. You have to take the experience of the guys in the series. The people testing it are multiple champions and Indy 500 winners. Being new to the series, I look to them for support.

“INDYCAR is so great and working with Dallara has been great making the cars as safe as possible. Everybody’s desire to see them as safe as can be is huge, not only to the drivers, but to their families. You can’t stop things from happen, but you can take solace and comfort into making things as safe as possible.”

Conor Daly is one driver, however, that isn’t sold on the Aeroscreen concept. He admits as an “old school” driver, it’s going to be a bit strange to be surrounded by an additional structure between himself and the race.

“I’m very curious,” Daly told NBC Sports.com. “I’m not a huge fan of the whole Aeroscreen thing because I like my air flow, but if they sort it out for safety, that’s really cool. As long as they go through testing, that’s awesome. They know what we as drivers are looking for and what we would like to see out of this program.

“(INDYCAR President) Jay Frye has done a great job and they hear our concerns, so we will see what happens.”

Many fans have been outspoken on how the screens change the look of the race car, but it’s hard to take those criticisms seriously if the device can save drivers from getting killed. There were also critics of the HANS Device when it was implemented in 2001 following NASCAR driver Dale Earnhardt’s death, but when it became obvious the HANS Device eliminated the Basilar Skull Fractures, those criticisms quickly ended.

“It’s the evolution of the sport,” Andretti Autosport engineer Ray Gosselin told NBC Sports.com. “Things change over time. We can’t always have things the way we liked them 20 and 30 years ago. The sport has changed. Anything for safety, the sport is all for.

“It’s going to be a huge expense for the owners. They will get some help from INDYCAR on the initial ones, but in the end, it will still be a huge expense for the teams to do this. If it will help protect guys, that’s what we are all for. We have to do whatever it takes for safety. Hopefully, we don’t ruin things in the meantime.

“We like the way the racing is right now.”

The racing may change, though, and to what extent won’t be determined until all cars are on the track equipped with the extra weight from the Aeroscreen. Gosselin and other race engineers will have to factor that in when they devise speed setups on the race cars because the center of gravity, aerodynamic drag and downforce will be changed.

The downforce may actually be reduced because the airflow coming off the Aeroscreen may go well above the rear wing, rather than onto the wing. The rear wing helps keep the car stable and planted to the race track.

“We only have the additional aero numbers from Dallara; we don’t have anything final yet,” Gosselin explained. “We only have the target CG (center of gravity) height and Fore Aft CG changes so you can do some simulations based on that to recover your balance.

“But it’s a big unknown once you get it all together. And, once you get you get your aero and mechanical together, what is going to happen to the tires? They haven’t even gotten to the tire testing portion of this yet, so Firestone comes back with a tire that recovers the balance of those changes and you don’t have to do anything.

“We’ll find out Monday, too, when Ryan Hunter-Reay runs at Barber Motorsports Park. The track has been repaved and what tire is Firestone going to come out with to cope with changes in mass and CG with the Aeroscreen.

“Until we get to that stuff, it’s hard to say. Are we throwing all of our setups out the window? Are we keeping them? Are we tweaking them? I don’t know yet.”

The Aeroscreen may also “punch a bigger hole” in the air, and that could potentially bring back the draft to such tracks as the Indianapolis Motor Speedway. Before the current aerodynamic package entered competition in 2018, the previous configuration featured “rear pods” that created a large “wake” from the car in front. That meant drafting played a big role in the style of racing.

“A lot of people liked the style of racing we had from 2012 to 2017,” Gosselin said. “There was a lot of passing for the lead and a lot of passing throughout the pack. You were never really out of it. The racing we’ve had the last two years, you are really earning your spots to make one move.

“If you go back to Alexander Rossi and Simon Pagenaud at the end of this year’s Indianapolis 500, if you go back two years, they would have swapped positions three or four more times in that last little restart?

“Will we go back to that? Will it punch that big of a hole in the air?

“We will find that out in testing.”

There are other areas that will need to be refined, such as improved airflow through ducts at the bottom of the Aeroscreen. Drivers admitted the inside of the cockpit will increase in temperature, and teams will find ways to cool the inside better airflow.

“We are trying some different stuff to stop helmet buffeting,” Power said. “We think we have fixed that. Driver cooling, we are trying to duct the air in the best way. So far, it’s been pretty good. No problems at all.

“It’s a pretty good day because you get a feel over the long run with really hot conditions and also how the cooling is for the driver.

“It doesn’t change the way the car drives; if anything, it feels more stable and better. The car felt pretty good out the box, but we want to see how it runs in traffic. It’s very early days with this thing, so it’s not like we want to run in the pack or anything.

“I think you would be fine too, actually. It’s pretty good.”

Another aspect is the higher screen changes the way drivers get in and out of the race cars. INDYCAR has addressed the safety aspect of that with its famed AMR Holmatro Safety Crew, which continues to practice getting drivers in and out of the configuration.

“I’m sure getting in and out of the car, you will get better at it,” Power said. “It’s something we will be practicing a lot.”

Frye has been a key figure in moving this project forward. He is confident teams will find ways to improve the look of the car.

And, the new screens, even create an additional sponsorship opportunity to the teams that previously didn’t exist with a true “open cockpit.”

“We will let them monetize the front of the screen so they can put sponsor logos on it,” Frye told NBC Sports.com.” We have looked at every part of this.

“Monetizing is a good thing. Economics matter. It will create a monetization opportunity.

“And most importantly, it’s safer.”

Follow Bruce Martin on Twitter at @BruceMartin_500

Latest INDYCAR Aeroscreen test continues to provide feedback; data to series

Bruce Martin Photo
Bruce Martin Photo
Leave a comment

RICHMOND, Virginia – After completing its third Aeroscreen test since October 2, INDYCAR continues to collect valuable data and feedback from the drivers and engineers involved in testing.

The latest test of the Aeroscreen came Tuesday, October 15 at Richmond Raceway, a .750-mile short oval. Five-time NTT IndyCar Series champion Scott Dixon has been involved in testing dating all the way back to 2017 at Phoenix with the original “Windscreen.” Tuesday’s test was the first-time two-time NTT IndyCar champion Josef Newgarden was able to test the device that partially encloses the cockpit proving greatly enhanced driver safety.

It was also the first time the current “Aeroscreen” designed and created by Red Bull Advanced Technologies, Pankl and Dallara has been tested at a short oval – a track that measures under 1.5-miles in length.

The previous tests were at the 2.5-mile Indianapolis Motor Speedway on October 2 and the Barber Motorsports Park road course on October 7.

“It wasn’t a problem getting in the car today and relearning a new viewpoint,” Newgarden told NBC Sports.com at the conclusion of Tuesday’s test. “It felt like a new viewpoint. It’s still an Indy car. It still feels like an Indy car. The car does a lot of the things it did before. It required some slight tuning differences to accommodate a different center of gravity and different total weight.

“Overall, it still felt like the same Indy car I drove three weeks ago. You get used to that new viewpoint within 30 or 40 laps. It was alien at first but halfway through the day it feels like home again.”

Newgarden’s Team Penske test team along with INDYCAR officials worked on changes to getting air into the cockpit and directing the air to the right place where the driver can utilize it.

“We’ve come up with some solutions that we like,” Newgarden said. “INDYCAR and the teams will continue to fine-tune this. That is why we are doing these tests. The main goal was to figure this out and fine-tune this stuff. We have come up with a lot of good solutions to all of the little things we have talked about that we have needed so when Sebastien Bourdais goes to Sebring (on November 5), it will just be another version.

“We are already close. Because they are such small details, it feels like normal racing stuff and we will come up with solutions for that.”

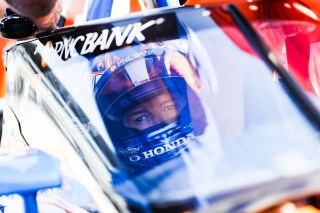

Some drivers who have participated in the Aeroscreen test has said, they almost feel naked without having the halo-like structure with a clear windshield protecting them on the race car.

“Once we got through a whole IndyCar season, if you took it off, it would feel really strange,” Newgarden said. “People adapt so quickly to a change, what the car looks like. Once you give us a couple of races and a full year, it will feel like home and something we are very used to as drivers.

“It is already starting to get that way. People are feeling more comfortable with it. The field of view is almost identical to the way it was before. Your peripheral vision is identical, the way you look out the front of the cars is identical, the way you see the tires is identical.”

Individual driver preference will allow for shading of the sun and that can be accomplished with the visor strips on the helmet and the tear-offs on Aeroscreen.

Drivers will also have a bit of a quieter atmosphere inside the cockpit. The partial enclosure makes it easier to hear his radio communication and the sounds of the engine in the driver’s car. It partially blocks out the sounds of the engines in the other cars and the rush of wind traveling at high speeds that used to buffet in and around the helmet.

“It has changed the noise level slightly inside the cockpit,” Newgarden said. “For me, it wasn’t super dramatic. It’s a slight reduction in wind noise. You’re not getting the wind directly over your head as dramatically as you would before. All that external noise has just been dimmed.

“You can hear the radio a touch better, things like that. But the engine noise is still quite prominent. It’s bolted directly behind us, so you still hear quite a bit of what’s going on in the car and the engine.”

Dixon was in the car at Indianapolis on October 2 and returned on Tuesday. The Barber test on October 7 included this year’s Indianapolis 500 winner, Simon Pagenaud, in a Team Penske Chevrolet and Ryan Hunter-Reay in an Andretti Autosport Honda.

“The only differences are the openings on the front wing that creates some more airflow around the legs and body and a different inlet in the screen that was in place today,” Dixon told NBC Sports.com. “There were helmet cooling options since the Barber test because on the road course, some of the drivers were getting a little hotter.

“This project has been very in-depth. It hit the ground running very smoothly. There are some alternate options they are trying to create, especially on the street courses where we will experience hot condition. On street conditions, your depth perception changes because of how close you are to the walls, but we should get used to that.”

Two weeks ago, Team Penske driver Will Power said it takes a different style to get out of the race car because of the added height of the Aeroscreen.

That hasn’t been a problem for Dixon.

“That’s easy, man,” he said. “Just go through the hole in the top.”
